IS-PDS-VMU
Patent Application Numbers: 10-2023-0191202, 10-2024-0036430

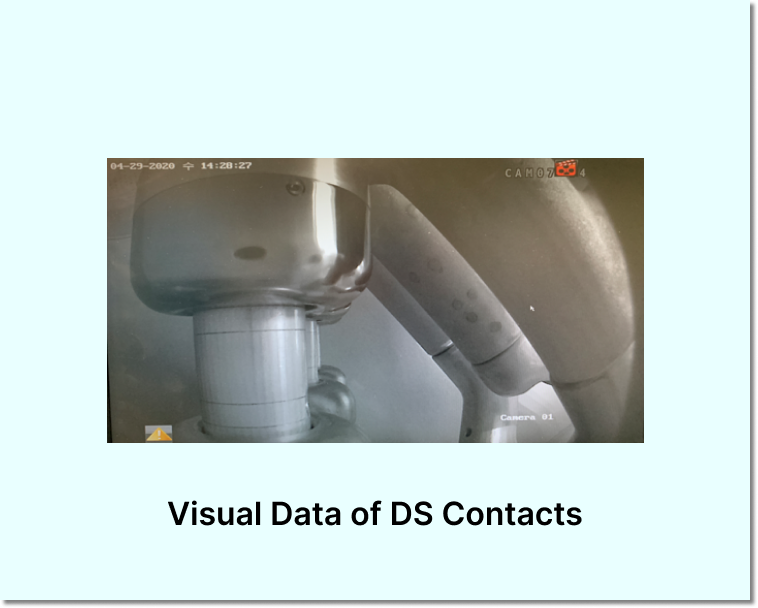

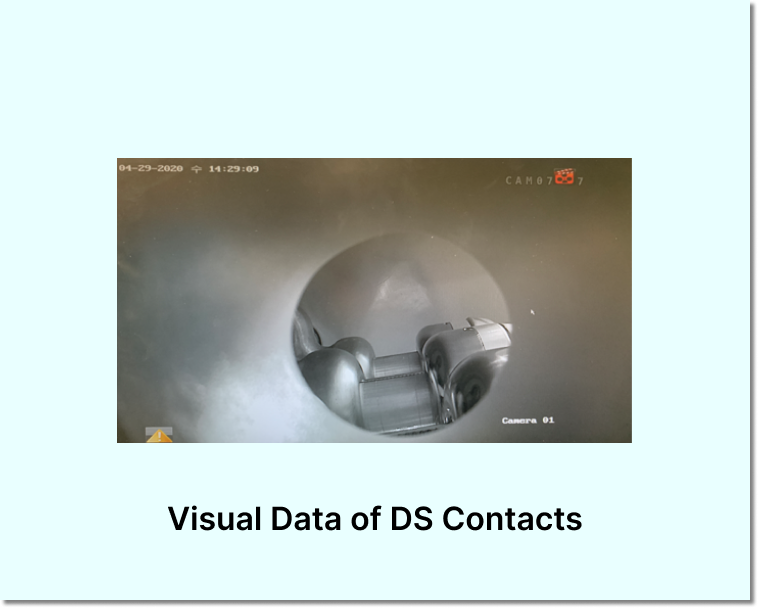

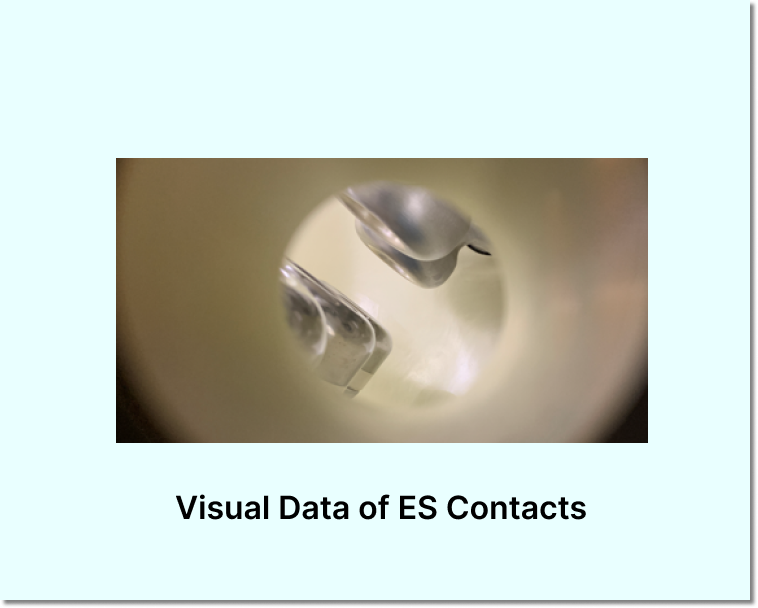

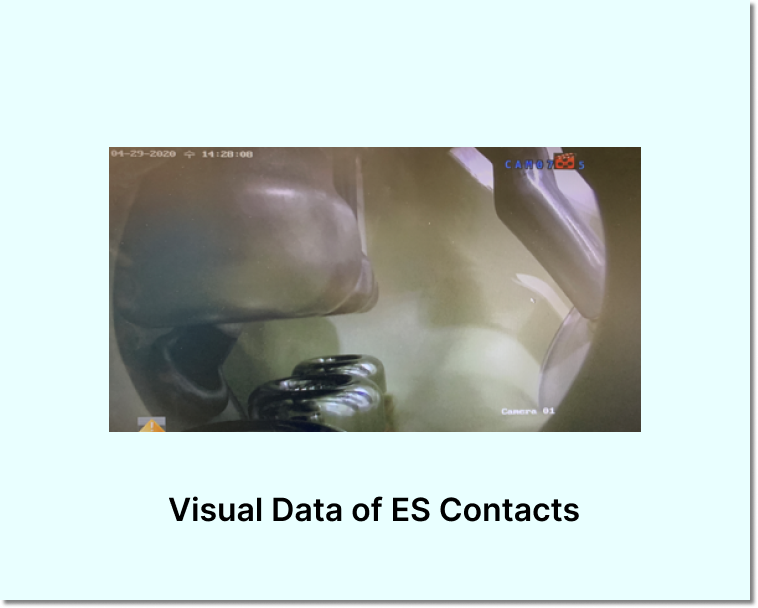

The ES/DS of GIS have a sealed structure, making it impossible to visually confirm the operation. If the on/off status is incorrectly verified, it can lead to major accidents due to malfunctioning or failures in the drive mechanism of disconnectors and grounding switches. IS-PDS-VMU is installed in the inspection window of the ES/DS in GIS, allowing real-time monitoring of the disconnector and grounding switch status. Inspectors can visually verify the normal operation of the OPEN/CLOSE actions through the camera, preventing accidents caused by internal defects or malfunctions in the ES/DS.
Key Features
Real-time visual monitoring of disconnector and grounding switch positions
Ensures the safety of inspectors during inspections or maintenance
Allows for cause analysis and response in case of abnormalities through real-time monitoring
Supports up to 60 cameras for connection
Optimizes the view of each area through individual LED ON/OFF controls
Convenient monitoring features with a dedicated UI
